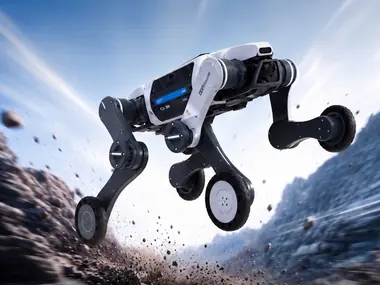

DeepRobotics Lynx S10 Robot for Robonix

This repository defines a Robonix deployment for the DeepRobotics Lynx S10 wheeled quadruped. It describes the robot body to Soma, configures the Robonix system services, and assembles the hardware Primitives and high-level Skills used by the robot.

The repository is the integration layer for the complete robot. Device drivers and task logic remain in independent packages:

• The Orbbec camera Primitive provides RGB-D sensing.
• The Lynx chassis Primitive translates standard Robonix chassis commands into the Lynx UDP protocol.
• The InternVLA Navigation Skill performs closed-loop vision-language navigation.

Keeping these packages separate allows the robot description, device drivers, and task logic to evolve independently while communicating through standard Robonix capabilities.

Features

• Registers the DeepRobotics Lynx S10 as a wheeled quadruped in Soma.
• Loads the robot URDF and identifies base_link as the root frame.
• Starts the standard Robonix system services: Atlas, Soma, Executor, Pilot, and Liaison.
• Integrates an Orbbec Gemini 336L camera through the Orbbec camera Primitive.
• Integrates Lynx chassis motion through the standard robonix/primitive/chassis/move capability.
• Supports natural-language visual navigation through the InternVLA Navigation Skill.
• Keeps hardware-specific control parameters in the chassis Primitive rather than in the robot description or navigation Skill.
• Supports both ratio-based and direct-value Lynx control through deployment configuration.

Architecture

flowchart TD
    U["User instruction"] --> P["Robonix Pilot"]
    P --> S["InternVLA Navigation Skill"]
    S --> C["Orbbec Camera Primitive"]
    S --> L["Lynx Chassis Primitive"]
    S --> V["InternVLA Server"]
    C --> R["Lynx S10 deployment"]
    L --> R

Pilot interprets the user's request and dispatches the navigation Skill. During navigation, the Skill captures an RGB image, requests an action from the separately running InternVLA server, and sends a generic distance or angle command to the chassis Primitive. The chassis Primitive alone is responsible for converting that command into Lynx-specific UDP control values.

Repository layout

robot-deep_robotics-lynx_s10/
├── .env.example
├── LICENSE
├── README.md
├── robonix_manifest.yaml
├── soma.yaml
└── urdf/
    └── lynx_s10.urdf

The Primitive and Skill packages are normally kept as sibling repositories and referenced from robonix_manifest.yaml:

workspace/
├── robot-deep_robotics-lynx_s10/
├── primitive-orbbec-camera/
├── primitive-deep-robotics-lynx-chassis-rbnx/
└── skill-internvla-navigation-rbnx/

Robot description

The soma.yaml file provides the semantic description of the physical robot:

urdf:
  path: ./urdf/lynx_s10.urdf
  root_link: base_link
  model_name: deep_robotics_lynx_s10

robot:
  id: lynx_s10_01
  display_name: DEEP Robotics Lynx S10
  family: wheeled_quadruped
  root_part: base
  components:
    - id: base
      type: mobile_base
      urdf_link: base_link

The URDF supplies the robot's link and joint structure, while soma.yaml supplies the semantic identity that Robonix uses to reason about the robot and associate capabilities with its components.

If the chassis or camera capabilities are exported from soma.yaml, their provider_id values must match the package names used in robonix_manifest.yaml.

Requirements

Hardware

• DeepRobotics Lynx S10 wheeled quadruped.
• A Linux host capable of running Robonix. The current deployment has been tested on NVIDIA Jetson AGX Orin.
• Network connectivity from the host to the Lynx UDP control endpoint.
• Orbbec Gemini 336L RGB-D camera connected to the host when camera navigation is enabled.
• A clear test area and access to the manufacturer's manual control or emergency-stop mechanism.

Software

• Ubuntu 22.04.
• Robonix CLI (rbnx).
• ROS 2 Humble for the Orbbec camera package.
• Python 3.10 or later for the native Primitive and Skill packages.
• Docker when required by a selected package.
• A separately running InternVLA inference server for InternVLA navigation.
• Access to an OpenAI-compatible VLM endpoint for Robonix Pilot.

Related packages

The deployment expects these packages to be available at the paths configured in robonix_manifest.yaml:

Environment configuration

Pilot requires an OpenAI-compatible VLM endpoint. Create a .env file or export the following variables before booting the deployment:

export VLM_BASE_URL="https://your-vlm-endpoint/v1"
export VLM_API_KEY="your-api-key"
export VLM_MODEL="your-model-name"

Do not commit real API keys to this repository. A local .env file should be excluded through .gitignore.

Deployment configuration

The repository-level robonix_manifest.yaml configures both the Robonix system services and the robot packages. The following example reflects the current package responsibilities:

manifestVersion: 1

catalog:
  name: robonix.robot.deep_robotics.lynx_s10
  version: 0.1.0
  description: Robonix deployment for the DeepRobotics Lynx S10.
  license: Apache-2.0
  tags:
    - robot
    - deep-robotics
    - lynx-s10
    - wheeled-quadruped

name: robot-deep_robotics-lynx_s10

env:
  LOG: "INFO"

system:
  atlas:
    listen: 127.0.0.1:50051
    log: info
  soma:
    listen: 127.0.0.1:50091
    robot_yaml: soma.yaml
  executor:
    listen: 127.0.0.1:50061
    log: info
  pilot:
    listen: 127.0.0.1:50071
    log: info
    vlm:
      upstream: ${VLM_BASE_URL}
      api_key: ${VLM_API_KEY}
      model: ${VLM_MODEL}
      api_format: openai
  liaison:
    listen: 0.0.0.0:50081
    log: info

primitive:
  - name: orbbec_camera
    path: ../primitive-orbbec-camera
    config:
      camera_name: camera
      camera_model: gemini330_series
      color_profile: 640x480x15
      depth_profile: 640x480x15
      depth_registration: true
      enable_color: true
      enable_depth: true
      enable_point_cloud: false
      enable_imu: false
      device_preset: ""
      serial_number: ""
      usb_port: ""
      sentinel_timeout_s: 30.0

  - name: lynx_chassis
    path: ../primitive-deep-robotics-lynx-chassis-rbnx
    config:
      dry_run: true
      robot_ip: 10.21.33.103
      robot_port: 30004
      timeout: 3.0
      ctl_hz: 20.0

      control_mode: ratio

      forward_ratio: 0.30
      turn_ratio: 0.40
      forward_sec_per_meter: 4.0
      turn_sec_per_degree: 0.0666667

      move_v: 0.20
      turn_w: 0.50

      default_dur: 0.50
      yaw_sign: 1.0

service: []

skill:
  - name: internvla_navigation
    path: ../skill-internvla-navigation-rbnx
    config:
      server_url: http://127.0.0.1:5801
      client_id: lynx-01

      request_timeout_sec: 120.0
      camera_timeout_sec: 10.0
      chassis_timeout_sec: 10.0

      max_steps: 100
      timeout_sec: 300.0
      wait_interval_sec: 0.30

      lookahead_m: 0.30
      discrete_forward_m: 0.25
      turn_threshold_deg: 15.0
      discrete_step_deg: 15.0

The deployment owns package selection and package paths. Each package owns the meaning and validation of the values under its own config block. Consult the corresponding package README and config.spec before changing those fields.

Control responsibility

The navigation command path is intentionally divided into three layers:

The Skill does not contain forward_ratio, turn_ratio, motion duration, or Lynx protocol settings. These hardware-specific values belong exclusively to the chassis Primitive.

The chassis Primitive supports two startup modes:

• control_mode: ratio uses Lynx Motion_Ctrl and the configured ratio calibration.
• control_mode: direct uses Lynx Real_Motion_Ctrl and the configured direct velocity values.

Changing the chassis control mode does not require any change to the navigation Skill.

Build

From the robot deployment repository, validate and build all configured packages:

rbnx validate .
rbnx build -f robonix_manifest.yaml

When package definitions or generated capabilities change, perform a clean build:

rbnx shutdown
rbnx clean -f robonix_manifest.yaml --cache
rbnx build -f robonix_manifest.yaml

The InternVLA model server is external to the Robonix deployment and must be started separately before using the navigation Skill.

Start

Load the VLM environment variables and boot the deployment:

set -a
source .env
set +a

rbnx boot -v -f robonix_manifest.yaml

In another terminal, inspect the registered capabilities:

rbnx caps -v

The capability list should include at least the camera snapshot, chassis move, and InternVLA navigation contracts provided by the selected packages.

Usage

After the camera Primitive, chassis Primitive, InternVLA server, and Robonix system services are ready, submit a navigation instruction through Pilot:

rbnx ask "Use InternVLA to navigate next to the red chair."

For the first end-to-end test, keep the chassis Primitive in dry-run mode:

dry_run: true

This allows the complete perception and planning path to run while the chassis Primitive logs the converted motion commands without sending UDP packets to the physical robot.

Verification

Use the following checks after boot:

rbnx caps -v

Verify the subsystems in this order:

1. Confirm that Soma loads soma.yaml and the Lynx URDF without errors.
2. Confirm that the Orbbec camera Primitive registers and can capture an image.
3. Confirm that the Lynx chassis Primitive registers robonix/primitive/chassis/move.
4. Confirm that the InternVLA server responds to its health endpoint.
5. Run one navigation instruction with dry_run: true.
6. Inspect the generated forward_m and rotate_deg commands and their Lynx conversion.
7. Enable physical motion only after the directions and magnitudes are correct.

If package capabilities are missing after a manifest change, rebuild and boot again:

rbnx shutdown
rbnx clean -f robonix_manifest.yaml --cache
rbnx build -f robonix_manifest.yaml
rbnx boot -v -f robonix_manifest.yaml

Troubleshooting

The URDF or robot description does not load

• Confirm that soma.yaml points to ./urdf/lynx_s10.urdf.
• Confirm that the URDF root link is base_link.
• Run commands from the deployment repository root so relative paths resolve correctly.

A package cannot be found during build

• Confirm that each relative path in robonix_manifest.yaml matches the local repository layout.
• Confirm that every package contains a valid package_manifest.yaml and build script.
• Use rbnx clean --cache after changing package manifests or capabilities.

The camera is unavailable

• Confirm that the Orbbec device is connected and visible to the operating system.
• Confirm that the configured color and depth profiles are supported by the camera.
• Confirm that no other process exclusively owns the device.

The chassis capability is registered but the robot does not move

• Confirm that dry_run is false.
• Confirm that the host can reach robot_ip and that robot_port matches the Lynx SDK endpoint.
• Confirm that the robot is in the required control state and that vendor-side control permissions are enabled.
• Inspect the chassis Primitive logs for the selected control_mode, converted action, and UDP transmission result.

InternVLA navigation fails to start

• Confirm that the InternVLA HTTP server is running at server_url.
• Confirm that the camera snapshot and chassis move capabilities are discoverable.
• Confirm that the Skill configuration contains only the current fields documented by its config.spec.

Safety

• Keep dry_run: true until the complete command path has been verified.
• Test physical motion in an open area with the robot supported and supervised as required by the manufacturer.
• Begin with conservative chassis ratios and short navigation tasks.
• Keep the manufacturer's remote controller or emergency-stop mechanism immediately available.
• The current distance and angle execution is open-loop and may differ from the requested movement.
• The navigation Skill does not provide certified collision avoidance, localization, or emergency stopping.
• An all-zero chassis move request is a no-operation request, not an emergency-stop command.
• Shut down the deployment normally so the chassis Primitive can attempt its configured safe exit behavior.

Contributing

Contributions are welcome. When submitting a change:

1. Keep robot-body metadata in this repository.
2. Keep device protocol and control logic in the corresponding Primitive repository.
3. Keep model-output interpretation and task logic in the Skill repository.
4. Update soma.yaml when the physical component model or capability exports change.
5. Update robonix_manifest.yaml when package paths, versions, or deployment configuration change.
6. Verify the deployment in dry_run mode before testing on physical hardware.

Please include the Robonix version, host platform, robot firmware information, and relevant logs when reporting an integration issue.

License

Apache-2.0
